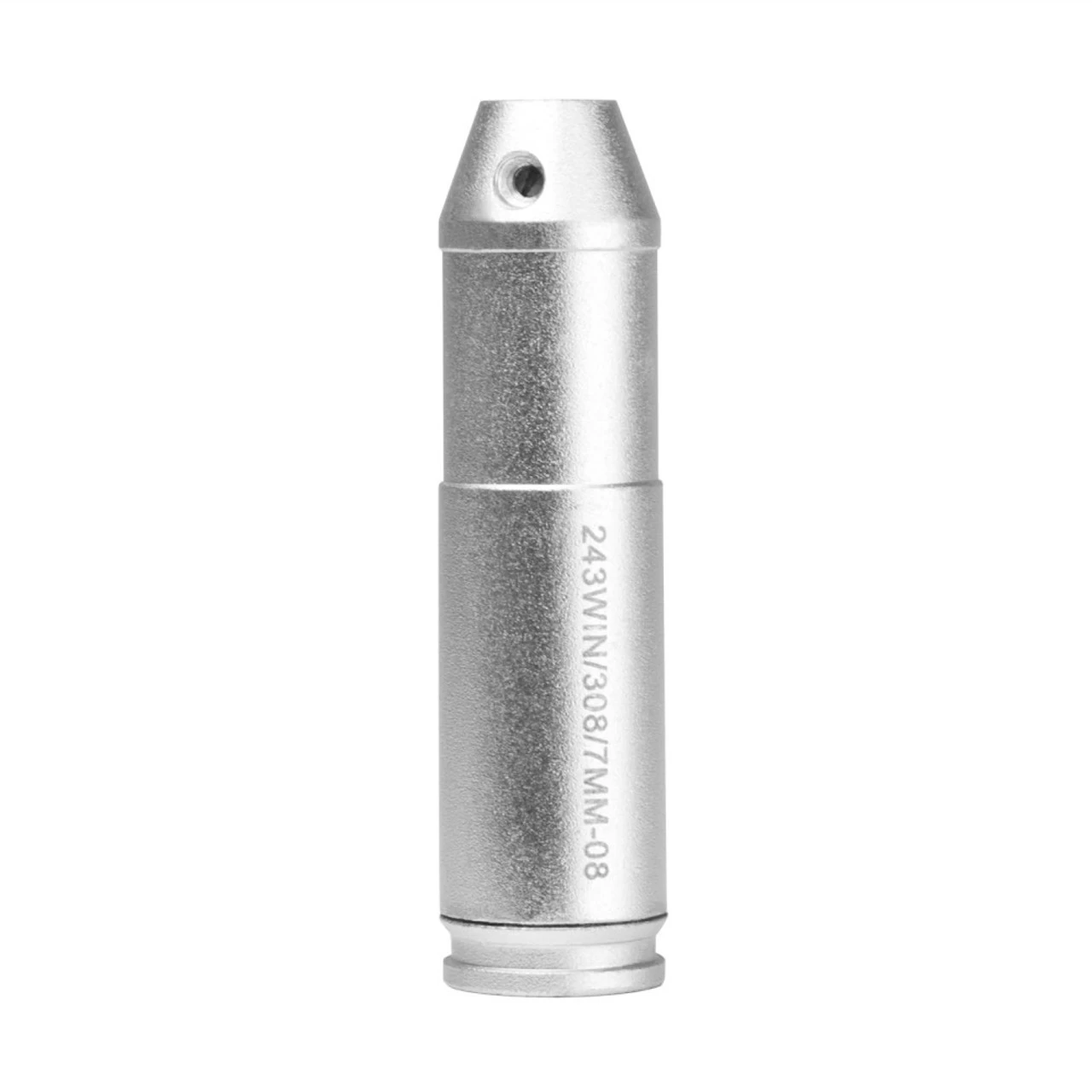

NCSTAR .308 Cartridge Red Laser Bore Sighter (TLZ308)

Features of NCSTAR 308 Cartridge Red Laser Bore Sighter TLZ308

• Fits .308 WIN & 7.62×51 NATO firearms
• Easy to use, just install the batteries into the Laser cartridge and screw on the base, which turns the laser on
• Factory Pre-Aligned Cartridge Bore Sighters, helps with Zeroing your optics
• Aluminum Construction
• Batteries Included
• .308 Win also works with these chambers: .243 Win, .260 Rem, .358 Win, 7mm-08
• Red Laser: 635-655nm
• Max output <5mw, Class IIIa Laser
• Silver Finish

Product Info for NCSTAR 308 Cartridge Red Laser Bore Sighter TLZ308

The NCSTAR .308 Cartridge Red Laser Bore Sighter (TLZ308) is designed for .308 Win, .243 Win, and 7mm-08 chambers ONLY. Do NOT attempt to insert the .308 boresighter into a different sized chamber. Doing so may cause damage to the boresighter and/or the rifle chamber.

Be sure that your firearm is unloaded and pointed in a safe direction before attempting to insert the boresighter. Always practice safe firearms handling procedures.

To install batteries twist the end cap of the boresighter counter clockwise to open the battery housing. Insert the three(3) supplied batteries (LR41) into the battery negative end first. Be certain that the batteries are all facing in the proper direction to ensure proper function of your boresighter. Twist the end cap counter clockwise until it is slightly snug. At this point you should visibly see the red laser. To turn the boresighter off simply twist the end cap counter clock wise until you no longer see the red laser. If you plan to store the boresighter for a long period of time without use, remove the batteries to preserve power life.

To zero your firearm set your rifle or other firearm in a gun vise or other stable platform so that it does not move. Turn the boresighter to the ON position. Insert your boresighter completely into the empty chamber. Avoid closing the action as the extractor may damage the boresighter. You may sight in your firearm at any desired distance that the laser is visible at (25 yards is recommended). Align your firearm so that the laser is centered on the bulls-eye. Adjust your scope (according to the Manufacturers specifications) so that the reticle of the scope matches with the laser and bulls-eye alignment. You now have a rough zero that should get you “on paper. Remember to remove the boresighter before attempting to load your firearm with live ammunition. Turn the boresighter OFF to preserve battery life, and store in a cool, dry place. It is necessary to confirm zero for firing at the target and making further adjustments so that firearm and sighting combination are perfectly accurate.

Do not dry-fire your firearm while the boresighter is inserted. Doing so may cause damage to the boresighter and will void the Limited One-Year Warranty.
